For my reverse engineering class (CSEC-202), I had to analyze a sample of malware. I choose Dexter (Win32.Infostealer.Dexter), from theZoo. Dexter infects PoS machines and then scrapes the memory of other processes for credit card data.
There are two files in the zoo for Dexter. One is named win33.exe and the other is named after it’s sha256 hash. Both files are the same size (68096 bytes) and have the same number of strings (1568). However, the files don't have the same sha256 hash. I thought that maybe they were the same binary except they used different addresses for C2. Using diff on the binaries strings shows the only difference is win33.exe contains 151.248.115.107 while the other contains 62.76.44.111.
5ffd4c5e1766196ac1cbd799de829812757684f4432f1b8de59054890997c30d - named after its hash
4eabb1adc035f035e010c0d0d259c683e18193f509946652ed8aa7c5d92b6a92 - named win33.exe
I didn't spend too much time looking at strings, but I did note some interesting things to look for when looking at the assembly/decompile. Searching for ".exe" brings a list of executable names (e.g. chrome.exe), "%s\%s\%s.exe", and ".exe;.bat;.reg;.vbs".
Next I searched the files hashes on virus total. This gives us some interesting information. The first file, win33.exe, doesn't give much info.
Filename: javaplugin.exe
First seen in wild: 2013-06-18 14:38:50 UTC
The next file which was just named after it's hash lists more info.
File name: javaplugin.exe
Processes Injected: %ProgramFiles(x86)%\internet explorer\iexplore.exe
IP Traffic: 62.76.44.111:80
Files Written: %APPDATA%\java security plugin\javaplugin.exe
Files Deleted: <PATH_SAMPLE.EXE>
Looking at these files on virus total led me to this collection. Quoting from the collection: 'Point-of-Sale malware/RAM scraper, "Dexter" Samples observed and collected during 2012 till 2013.'
Using PEView we can see the malwares imports. We can see it imports

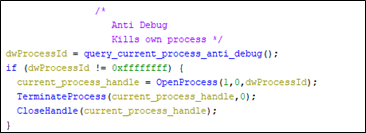

In the beginning of entry, we can see an anti-debug function is used. If the current process is being debugged the malware terminates itself. Hover the image to enlarge (and sorry for the low quality screenshots!).

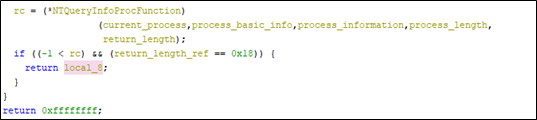

The function I named query_current_proccess_anti_debug, loads NTQueryInformationProcess using LoadLibraryA and GetProcessAdress.
NTQueryInformationProcess is called with parameter ProcessInformationClass set to ProcessBasicInformation (0). According to Microsoft documentation, ProcessBasicInformation is used to "Retrieves a pointer to a PEB structure that can be used to determine whether the specified process is being debugged, and ...".

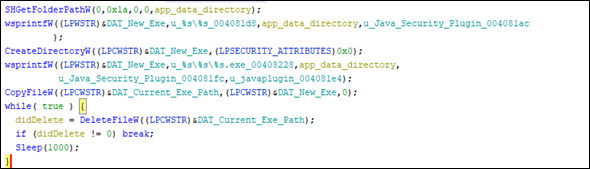

Then after initializing some data, we copy the currently running executable file to "%APPDATA%/Java\ Security\ Plugin/javaplugin" and delete the current file. This was why Virus total listed the file as deleting itself, and was named javaplugin.

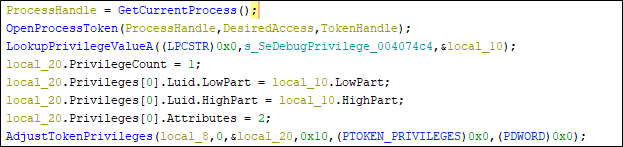

After this, the malware checks if it has debug privileges. If it doesn't it requests them using AdjustTokenPriviledges.

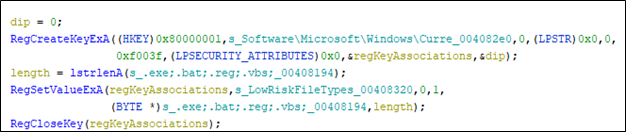

The malware also adds .exe, .bat, .reg, and .vbs to the LowRiskFileTypes registry. This will cause windows to not warn the user before running these files.

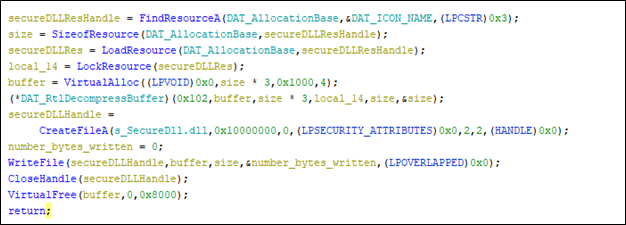

The malware also decompresses the resource we found using PEView and writes it to a file called SecureDLL.dll. CreateFileA is called with dwFlagsAndAttributes set to FILE_ATTRIBUTE_HIDDEN (2).

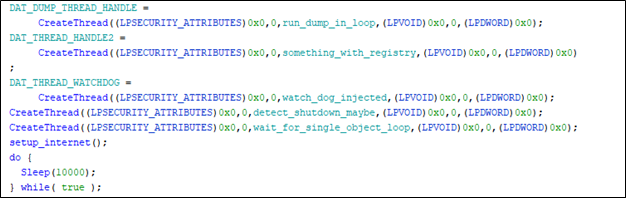

Near the end of entry, we see five threads are created. The handles for the first three are stored in global variables. The final two handles are discarded.
Entry - Creation of threads
The first thread is used to dump and scrape the memory of other processes.
It runs a function I named dump_process_memory in a loop. dump_process_memory runs through all processes and dumps their memory. However, it will not dump processes with certain names. The full list and a screenshot of the function to determine matches is included.

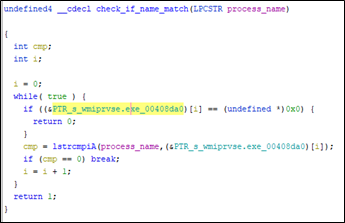

Called in dump_process_memory – If a process name matches one of those strings, that process is skipped
To dump the memory of other processes it uses the function ReadProcessMemory. It then passes the buffer containing dumped memory to a function I named parse_memory_dump.
From dump process memory
parse_memory_dump finds sequences of numbers broken by carets, semicolons, or equal signs. This is consistent with Track 1 (Visa) and Track 2 (MasterCard) credit card data formats. This function was very long with many goto statements, so I didn't try to fully understand it.

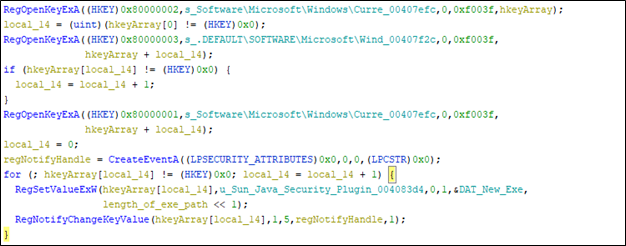

The second thread sets Run registries. It creates three registry keys to automatically start. It uses a value that was written to a global variable when we copied the exe to %APPDATA% and deleted the original. These allow the malware to establish persistence.
For reference the first numbers in RegOpenKeyExA are referencing:
#define HKEY_CURRENT_USER ( 0x80000001 )
#define HKEY_LOCAL_MACHINE ( 0x80000002 )
#define HKEY_USERS ( 0x80000003 )

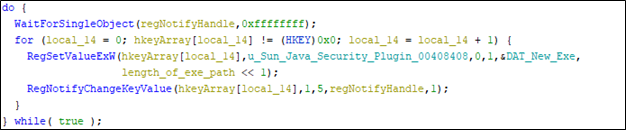

The malware also watches for the registry key values to change using WaitForSingleObject with a Handle registered with RegNotifyChangeKeyValue.
The next thread starts a new Internet Explorer process and injects into it using VirtualAlloxEx and WriteProcessMemory.

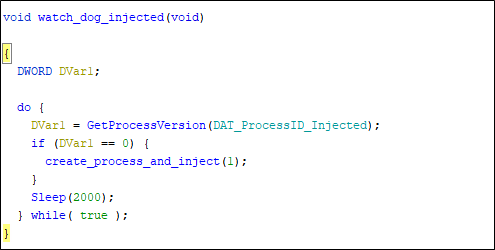

Another thread uses GetProcessVersion to make sure the injected process still exists. If it doesn’t it starts a new internet explorer process and injects.

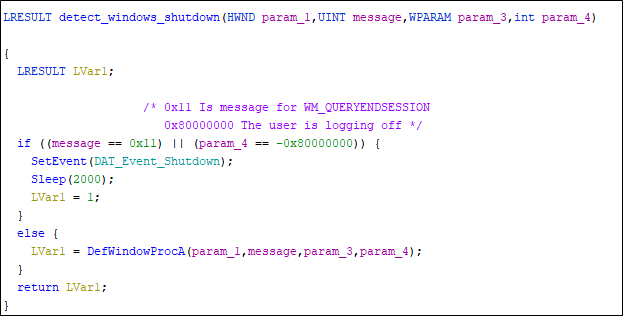

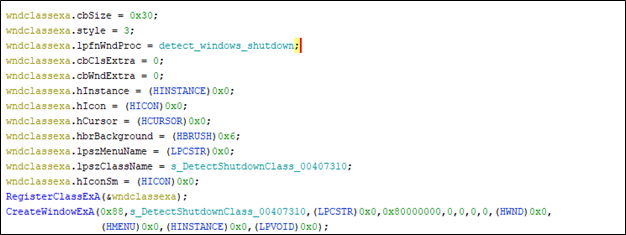

The final two threads watch for the user logging off.
The last screenshot is from a function that communicates with a C2 server
After the application receives a command it waits until the user logs off to receive another message. This might be to make it harder to detect that malware is running on the system.
After all these processes have been started, a function that communicates with a C2 server is ran. Functions under this function get information about the victim computer such as the Windows Version, architecture, username, and computer name. This information is sent in an HTTP request to "http://151.248.115.107/w19218317418621031041543/gateway.php"/. It looks like the malware includes functionality to connect to different IP addresses by using an array of pointers. However, the array only contains one address (151.248.115.107).
Dexter receives commands from a cookie.

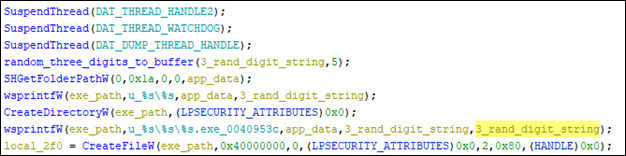

The commands the malware can receive are “update-“, “checkin:”, “scanin:”, “uninstall”, and “download-”. Unsurprisingly the update command updates the malware. After downloading the payload, it creates and writes to a file taking the form “%APPDATA%/random number/random number.exe”.

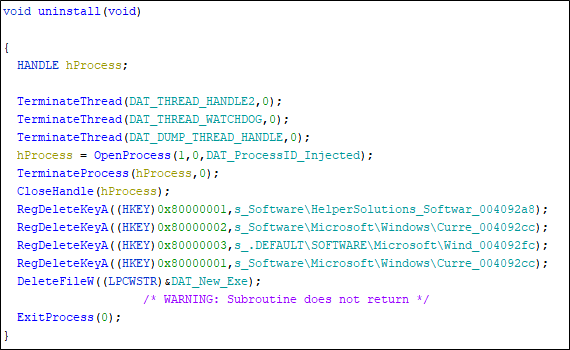

The “checkin:” command changes the amount of time to sleep after reconnecting. The “scanin:” command changes the amount of time to sleep between dumping/scraping memory. Both default to ten minutes. Uninstall uninstalls (terminates threads, deletes registry keys, deletes the executable file, and exits the process) the malware.

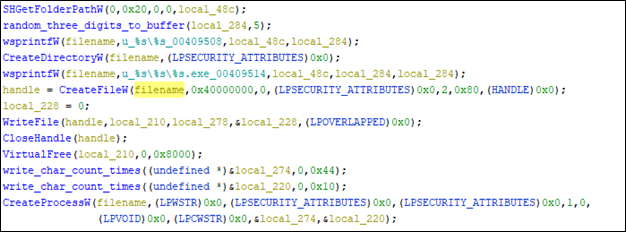

The last command “download-“ downloads a file and runs it. It downloads the file to the same format as update (“%APPDATA%/random number/random number.exe”). This means the malware can take any action since it can download arbitrary payloads.
Running the malware yields disappointing results. The DLL contained inside the malware is not written, no registries seen during static analysis are written and no network traffic is created from the malware. The process starts and then soon after exits. It seems to either not want to run or be broken (maybe because I'm running on Windows 10?).

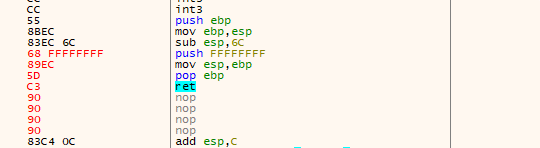

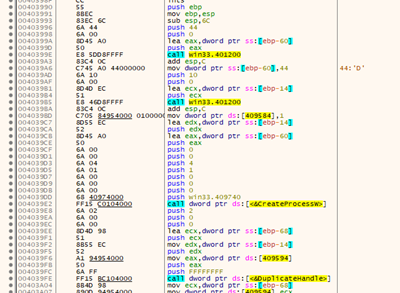

First I traced using log text “0x{p:cip} {i:cip}”. This will probably break on the anti-debug function. From the log file the last instruction run was “call 0x00403990”. This looks like the anti-debug function. I patched it so it would immediately return “0xFFFFFFFF” (this is what it returns when not being debugged, as seen from static analysis).
After patching, tracing did not work. The debugger would just stall with nothing written to the log. Running the program without breakpoints caused freezing and a black screen. Manually going through the program, I found that the memory dumping function was the issue. I turned the memory dumping functions call into a NOP and restarted.

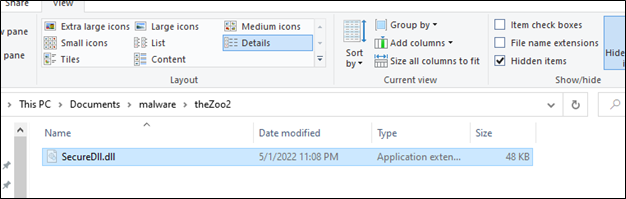

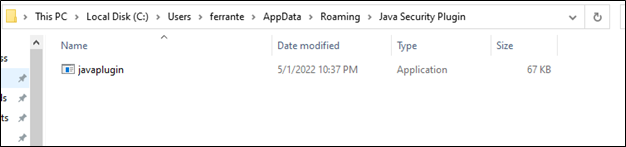

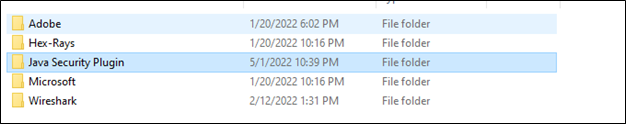

After that the malware sort of worked. The VM had some random freezes, random black screens, but I got it to write Secure.dll, and write itself to %APPDATA%. But it did not delete itself or create network traffic. Regshot (along with most other programs) seemed to not want to run after the malware ran. Checking registry keys manually showed no set keys. There seemed to be more issues when I was typing leading me to believe there is some sort of keylogger as well.

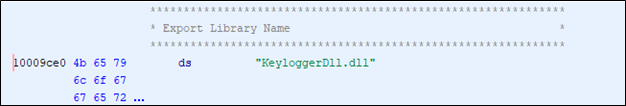

A quick look at SecureDLL.dll in Ghidra leads me to believe that it is a keylogger.
